**IMPORTANT: IF YOU SELECT "SOCKET" FOR YOUR CHARGER TYPE, YOU WILL ALSO NEED TO PURCHASE A CHARGING CABLE—CLICK HERE FOR OPTIONS**

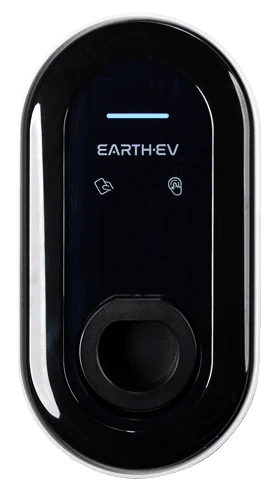

The Earth EV Wall Box gives you powerful, intelligent home charging with full mobile control. You can manage and monitor your charging sessions remotely, view live status updates and access smart reports that help you understand your energy use. Smart scheduling lets you charge at the best time for your household or energy plan, and SunSmart Solar integration allows you to take advantage of your own solar generation.
The Earth EV Wall Box gives you powerful, intelligent home charging with full mobile control. You can manage and monitor your charging sessions remotely, view live status updates and access smart reports that help you understand your energy use. Smart scheduling lets you charge at the best time for your household or energy plan, and SunSmart Solar integration allows you to take advantage of your own solar generation.
Built for Australian conditions, the durable UV and water-resistant case keeps your charger protected year-round. You can choose a socketed unit for flexibility or a hard-wired tethered version for a clean, fixed installation. RFID tap control adds an extra layer of security, letting you lock or stop sessions with ease.
With support for Wi-Fi, LAN or optional 4G connectivity, the Wall Box delivers dynamic load management and can balance charging between multiple units. It connects to any type 2 EV socket, giving you a smooth, efficient and future-ready charging experience.
Key Features
- Remote control and live mobile monitoring
- Smart scheduling and reporting
- SunSmart Solar integration
- UV and water-resistant protective case
- Available as socketed or hard-wired tethered version
- RFID stop and unlock security
- Balancing between multiple units
- Compatible with any type 2 EV socket
- Wi-Fi, LAN or optional 4G connectivity with dynamic load management
- AC Power (7kW | 22kW) 1Ø + N + PE | 3Ø + N +PE
- Rated Voltage (7kW | 22kW) 230V AC, 50/60Hz | 400V AC, 50/60Hz
- Rated Current (7kW & 22kW) 32A
- Tethered Dimensions (7kW & 22kW) 388.45mm (h) x 202.45mm (w) x 107.26mm (d)
- Tethered Weight (7kW & 22kW) 5kG
- Tether Length 5 Meters (type 2 tether)
- Tethered Packaging 455mm (h) x 260mm (w) x 230mm (d)
- Socket Packaging 455mm (h) x 260mm (w) x 150mm (d)
- Applicable Standards IEC61851, IEC62196, IEC62955
- Communication OCPP 1.6J, Wi-Fi /Bluetooth/LAN are standard (4G Optional)
- Safety Protection TypeA (30mA) + DC 6mA built-in, over current protection, over voltage protection, under voltage protection, over temperature protection, leakage protection, etc.
- Environmental Standards IP55
- Operating Temperature -30°C ~ 50°C (Storage -40°C ~ 75°C)
Charger comes with a standard 3-year warranty. Activate your FREE extended 2-year warranty (total 5 years) by registering your product here: https://earthev.com.au/warranty
Wallbox EV Charger – Scope of Supply
Installation & Location Installation of a wall-mounted EV charger at the customer’s nominated location, subject to site assessment and compliance Charger installed within the same building as the main switchboard Secure mounting to a structurally suitable wall surface Rear-entry cable termination preferred, with conduit concealed within the wall cavity where practicable Surface-mounted conduit used only where concealment is not possible (no wall chasing)
Cable Run Allowance Up to 20 metres of power cabling from the main switchboard to charger location Cabling concealed where reasonably practicable or installed neatly in conduit Additional cable length beyond 20m charged per metre
Electrical Works & ProtectionExisting meter box and switchboard must comply with AS/NZS 3000:2018 Connection to an existing single-phase or three-phase circuit with available capacity Supply and installation of a Type A RCBO rated up to 32A per phase Supply and installation of a weatherproof, lockable isolator where required to meet regulatory or inspection requirements
Smart Features & Communications Installation of CT clamps for solar monitoring or load management (where applicable) CAT6 cabling and terminations for CT clamps (up to 20m combined with power run) Connection to customer Wi-Fi (customer to provide internet access and credentials)
Commissioning & HandoverElectrical testing, configuration, and commissioning Verification of CT clamp operation, load control, phase alignment, and connectivity Electrical Certificate of Compliance (COC) Work order completion documentation Basic customer onboarding and app walkthrough Materials Supplied Licensed electrician labour Single-phase: up to 10mm² 2C+E Three-phase: up to 10mm² 4C+E Type A RCBO (up to 32A per phase) Weatherproof isolator where required Conduit, fittings, fixings, and standard installation hardware
Wallbox EV Charger – Exclusions
Electrical & ComplianceSwitchboard upgrades or reconfiguration Main supply, phase, or network upgrades Asbestos meter panel removal or replacement Earth bonding upgrades or new earth stakes Rectification of existing non-compliant electrical installations Any works required to bring an installation up to AS/NZS 3000:2018 compliance
Installation & Access Cable runs exceeding 20 metres Routing through roof cavities, sub-floor areas, multi-storey buildings, or restricted access zones Core drilling, trenching, concrete cutting, or excavation Installation on poles, freestanding mounts, or non-standard structures Works requiring EWP, scaffolding, traffic management, or specialised access equipment
Technical & General Advanced dynamic load management requiring hardware beyond standard CT clamps Full LAN/Ethernet networks Commercial or industrial electrical componets Integration with third-party energy management platforms Removal or relocation of existing chargers Cosmetic works including patching, painting, or surface restoration Any item not expressly listed in the scope of supply
